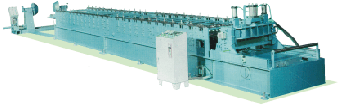

SINGLE
LAYER ROOF-BOARD FORMING MACHINE
|
| Specification | Standard Fitttings | |
|
1. Hydraulic Motor
|
10 Hp | 1. Uncoiler (KC-UND2) |
| 2. Number Of Stands | 20 ~ 25 Set | 2. Hydraulic Cuttting Device |
| 3. Roll Shaft Dia | 75 ~ 85 mm | 3. Digital pressure control circuit |
| 4. Thickness Of Forming Sheet | 0.3 ~ 0.8 mm | 4. PLC automatic control cabinet. |
| 5. Forming Speed | 16~ 20 M/min | 5. Run Out Table |
|
KC-RO400A
|
 |
 |
|
|
KC-RO400B
|
 |
 |
|
|
KC-RO400C
|
 |
 |
|
|
KC-RO400D
|
 |
 |
|
|
KC-RO400E
|
 |
 |
|
|
KC-RO400F
|
 |
 |
|
|
KC-RO400G
|
 |
 |
